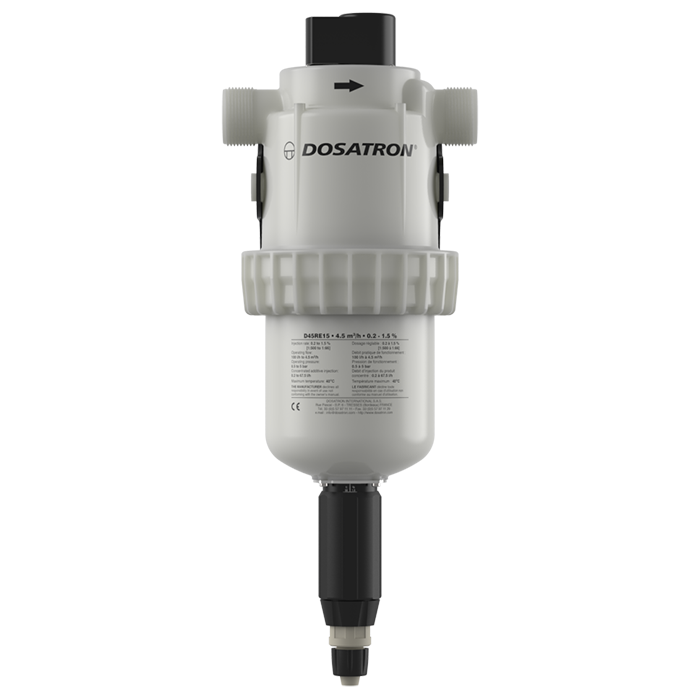

Dosatron expert dosing pump - D45RE15PVDF model

Click to enlarge

Dosatron expert dosing pump - D45RE15PVDF model

Back to the product list

D45RE15 PVDF

The D45 PVDF range of expert dosers meets the dosing needs for flow rates from 100 to 4,500 l/h.
It is characterized by:

Proportional dosing and without electricity
Proportionality dependent on water flow
Outlet injection
A PVDF housing adapted to the most agressive chemistry

Request a Quote Request Service, Parts or Support

Specifications

Injection range 0,2 - 1,5 % [1:500 - 1:67]
Water flow range 100 l/h - 4,5 m3/h
Operating water pressure 0,5 - 5 bar
Concentrated additive injection 0,2 - 67,5 l/h
Stroke volume ~ 0,8 l
Connections 33x42 [1”1/4] BSP male gas or 26.1 [1”] NPT male

Serial equipments

Seals for additives up to pH 9
PVDF housing for highly concentrated acids and other aggressive concentrates

Available options

Hastelloy plunger rod, high-strength alternative to steel in some models
