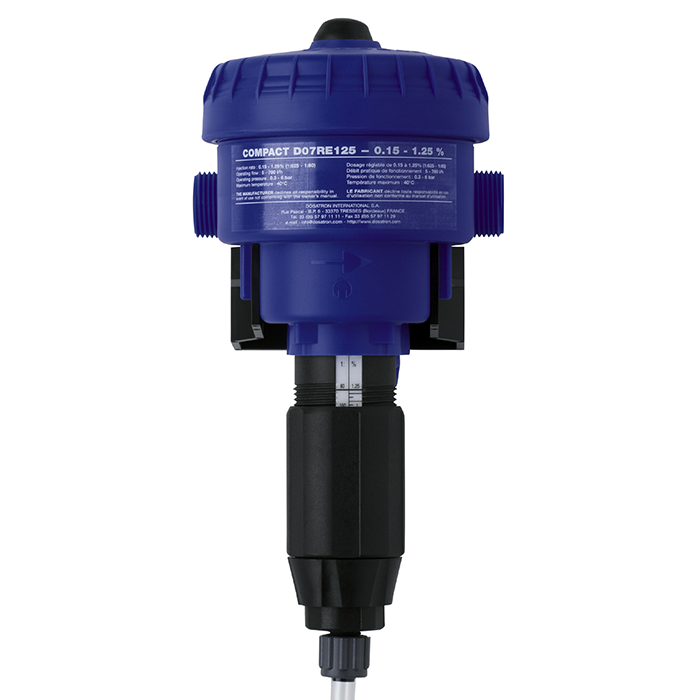

Dosatron mini dosing pump - D07RE125 model

Click to enlarge

Dosatron mini dosing pump - D07RE125 model

Back to the product list

D07RE125

The compact

Specific features

The standard dosing range D07 meets the dosing requirements for flow rates from 5 to 700 l/h.

Proportional dosing and without electricity
Proportionality dependent on water flow
Compact ergonomics
Outlet injection

Request a Quote Request Service, Parts or Support

D07RE presentation

See all our videos on our dedicated website.

Specifications

Injection range 0,15 - 1,25 % [1:666 - 1:80]
Water flow range 5 l/h - 0,7 m3/h
Operating water pressure 0,3 - 6 bar
Concentrated additive injection 0,0075 l/h - 8.75 l/h
Stroke volume ~ 0,225 l
Connections NPT-BSP 3/4'' M Ø 20x27mm

Serial equipments

Seals for acidic additives
Seals for alkaline additives
(Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)

Available options

PVDF housing for highly concentrated acids and other aggressive concentrates

Sectors

Dosatron Car Wash Dosing Pump Applications banner

Car washing

Learn More

Downloads

eclate-d07re125-u

Parts Diagrams - D07RE125

manual-notice-d07-fr

Manual - D07
