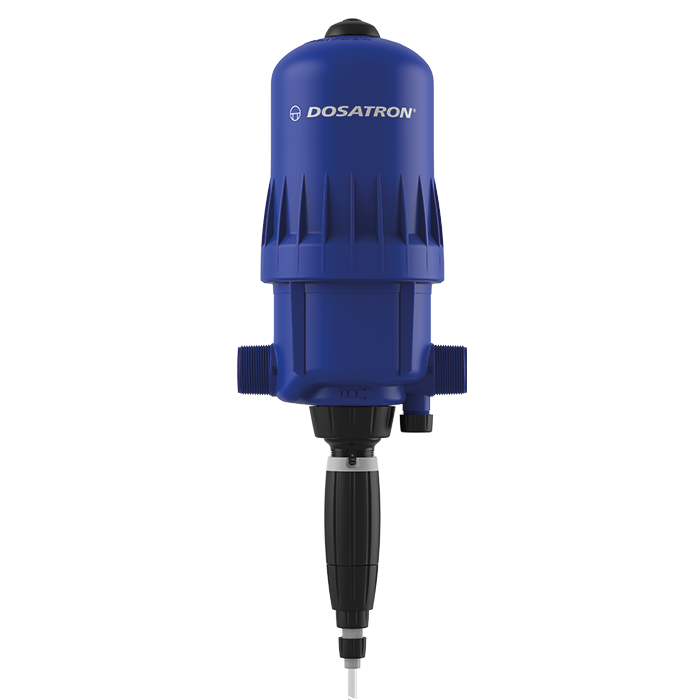

Dosatron generic dosing pump - D8RE3000 model

Click to enlarge

Dosatron generic dosing pump - D8RE3000 model

Back to the product list

D8RE3000: Replaced by D40MZ3000

The D8 range of dispensers meets the dosing needs for flow rates ranging from 500 to 8,000 l/h.

Proportional dosing and without electricity
Proportionality dependent on water flow
Outlet injection

Request a Quote Request Service, Parts or Support

D8RE presentation

See all our videos on our dedicated website.

Specifications

Injection range 0,03 - 0,125 % [1:3000 - 1:800]
Water flow range 500 l/h- 8 m3/h
Operating water pressure 0,15 - 8 bar
Concentrated additive injection 0,15 - 10 l/h
Stroke volume ~ 1,7 l
Connections NPT-BSP 1''1/2 M Ø 40x49mm
Hose PTFE Ø 4x6 mm- Lg 1,75m

Serial equipments

Seals for acidic additives
Seals for alkaline additives

Available options

(Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
Seals for highly concentrated acids (>15%)

Sectors

Dosatron Car Wash Dosing Pump Applications banner

Car washing

Learn More

Metal working - banner

Metal working

Learn More

Downloads

eclate-d8re3000-u

Parts Diagrams - D8RE3000

qsu-mes-d8

Quick Startup - D8

manual-notice-d8

Manual - D8
