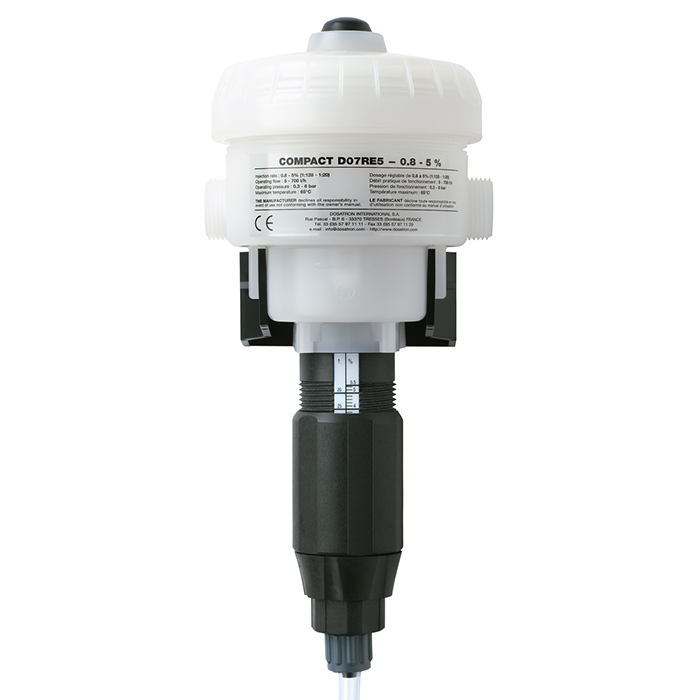

D07RE5 PVDF

The compact

Specific features

The D07 range of standard dosing units meets dosing requirements for flow rates from 5 to 700 l/h.

Proportional dosing without electricity
Proportionality dependent on water flow
Compact design
Outlet injection
A PVDF housing adapted to the most aggressive chemistries

Request a Quote Request Service, Parts or Support

Specifications

Injection range 0,8 - 5,5 % [1:128 - 1:18]
Water flow range 5 - 700 l/h
Operating water pressure 0,3 - 6 bar
Concentrated additive injection 0,04 - 38,5 l/h
Stroke volume ~ 0,225 l
Connections NTP-BSP 3/4'' M Ø 20x27mm

Serial equipments

PVDF housing for highly concentrated acids and other aggressive concentrates
Seals for acidic additives
Seals for alkaline additives
(Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
