- 注射范围 0,15 - 1,25 % [1:666 - 1:80]
- 水流量范围 5 - 700 升/小时
- 工作水压 0,3 - 6 巴
- 浓缩添加剂喷射 0,0075 - 8,75 升/小时
- 冲程容积 ~ 0,225 升
- 连接 NTP-BSP 3/4'' M Ø 20x27mm

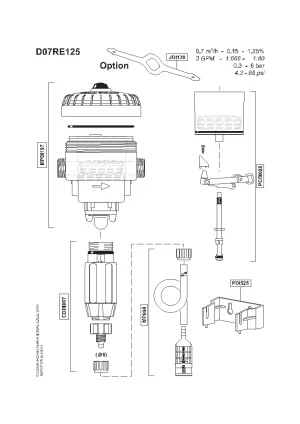

D07RE125 PVDF
The compact
Specific features
The D07 range of standard dosing units meets dosing requirements for flow rates from 5 to 700 l/h.
- Proportional dosing without electricity
- Proportionality dependent on water flow
- Compact design
- Outlet injection
- A PVDF housing adapted to the most aggressive chemistries
