ACS chlorine dosing pumps - Water flow up to 30m3/h


Why Using a Certified Chlorine Dosing Pump is Important ?

为了生产安全的饮用水,Dosatron ACS 或通过 NSF 认证的计量泵安装在水管上,按照流量比例注入一定剂量的氯(NaClo、CaClo),从而破坏水中的有机物,如病毒和微生物。

Since a large part of the chlorine is needed to neutralize these organic materials, the dose of chlorine delivered by the metering pump will allow a part, called free residual chlorine, to remain available to treat possible future infection of the water in the network or in the homes.

这种游离氯使消毒能力得以持续。

根据世界卫生组织的规定,在饮用水中,经处理的水的游离氯浓度应该是0.2至0.5毫克/升。

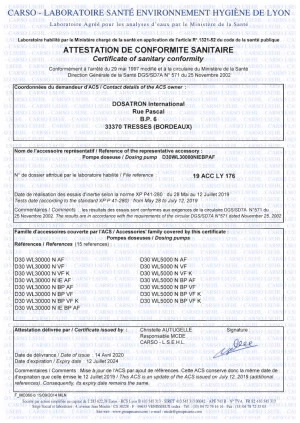

我们的氯制剂计量泵的ACS认证


经ACS认证的Dosatron氯制剂计量泵符合法国公共卫生法(CSP)中规定的质量要求,该法沿用了1998年11月3日关于供人饮用的水的质量的第98/83/EC号指令。

证书的有效性可以通过联系发证实验室,或查阅Carso集团实验室公布的有效卫生合格证书清单来验证。

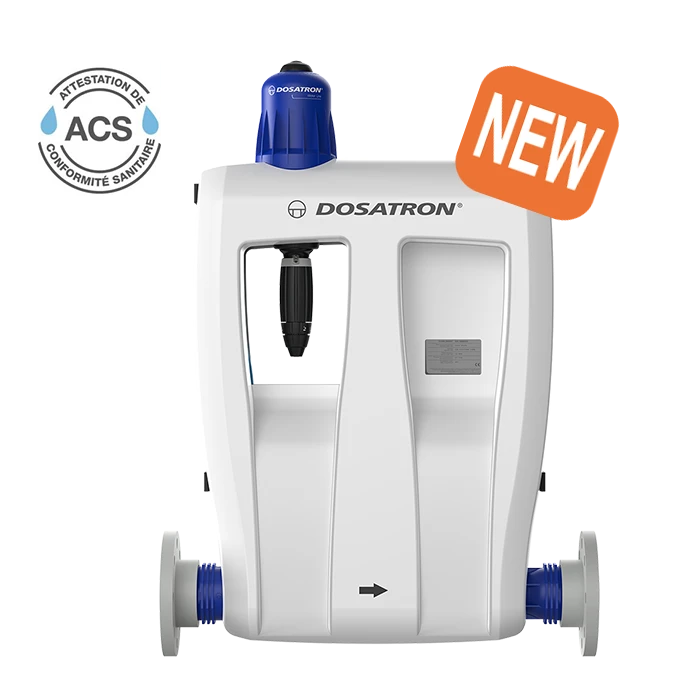

DT-En-Product-Photo-d30wl-acs

水线  注塑泵自 2019 年初开始扩展,配备了新型计量泵,可在不用电的情况下对化学品进行高达 30 m3/h(最大流量)的配料。

氯气或其他消毒化学品按比例投放,并始终以选定的剂量注入水中,以获得高质量水质。

How our high flow (up to 30m3/h) chlorine dosing pump working ?

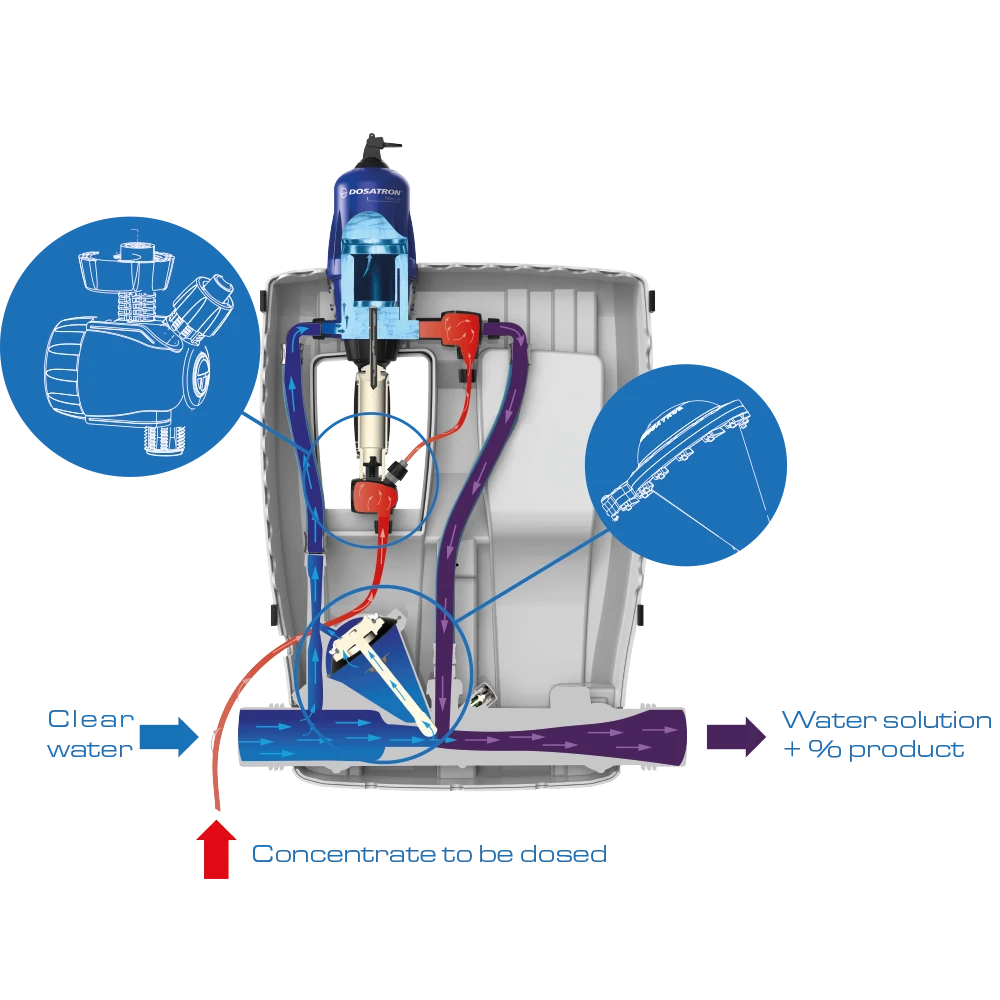

泵技术:
下部有一个分流器(专利技术),可确保以恒定的输入流量比进行连续分流。
A certified chlorine dosing pump in the upper part ensuring the dosing of the desired additive, in proportion to the flow rate supplied by the flow divider.

正如所有 Dosatron计量泵  ,整个系统对添加剂的计量与水的体积成正比,而不考虑可能发生的压力和流速变化。

DT-En-Product-Photo-d30wl-acs-V2

这些计量泵的具体特点是什么?

水卫生  、处理和消毒应用,适用于最长达 30 米的管网3/h,注入量为 0.24 至 60 升/小时。

The D30WL ACS chlorine dosing pumps have also obtained the mandatory French approval (ACS) for all equipment in contact with water intended for human consumption.   查看更多

这些氯剂量泵的特点是

  • Materials and options adapted to water treatment additives.
  • 无需电力即可进行化学喷射。
  • 剂量范围广。
  • Allows fully proportional dosing, regardless of flow and pressure variations.
  • Compatible with hard water.
  • 维护成本低(无需工具)。

安装D30WL加氯泵的最佳方法是什么?

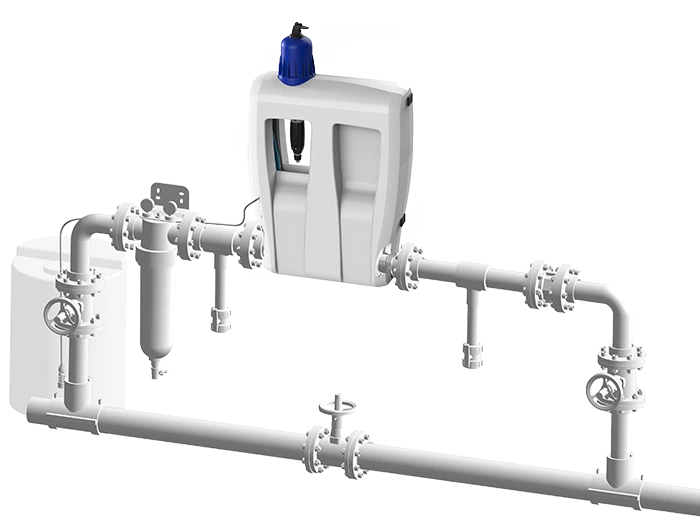

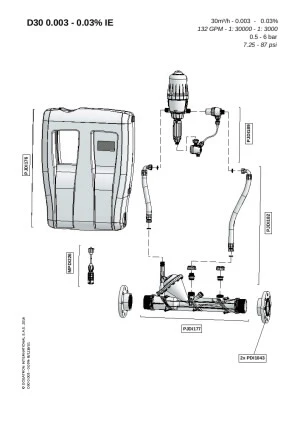

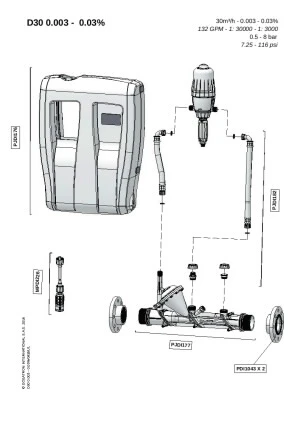

D30WL 化学计量泵必须按下图所示以旁通方式组装。
可以使用直列式组件,但不推荐使用,因为这样无法方便地隔离定量泵进行维护(必须切断供水)。

For installations from gravity tanks ensure that the minimum water pressure for the metering pump to operate correctly is available.

将 D30WL 加药系统安装在旁通装置上,可在不操作 D30WL 氯计量泵的情况下向装置供应清水,并可轻松拆卸。

DT-En-Product-Photo-d30wl-acs-V3

How to Make the Right Chlorine Dosage?

Dosatron公司新推出的智能手机应用程序将允许你进行所有的加氯计算,并与你想分享的人分享。
